ZEBRA

Type

Mistblowers

Tank Capacity

300 / 400 / 600 / 800 l.

Chassis

The ZEBRA chassis is fabricated from special UPN steel for durability and vibration resistance.

The steel is protected by a multi-stage powder coating process which includes:

  • Steel bullet grinding of all steel parts
  • Four-stage chemical pretreatment to remove grease and apply zinc, phosphate acids and/or nano ceramic rust protection
  • Drying and powder coating
  • Powder paint baking at 200º

In addition, ZEBRA is built with DELTA TONE®-treated bolts and nuts.


Tank

ZEBRA is available with a 400, 600or 1000 litre tank made of high-impact polyethylene which is UV-stable and highly resistant to plant protection chemicals. Additional features of the tank include:

  • Low centre of gravity design, for overall stability
  • Main tank has an overcapacity of 5%, to make filling safer
  • 15 litre clean water hand wash tank
  • Optional Rinse Tank and Tank Flush Nozzles
  • Tank contents indicator in the front and on the side of the tank
  • Top-operated drain valve
  • Efficient Venturi agitation
  • Powder mixer placed in the filling strainer
  • 5-Year Warranty under normal working conditions

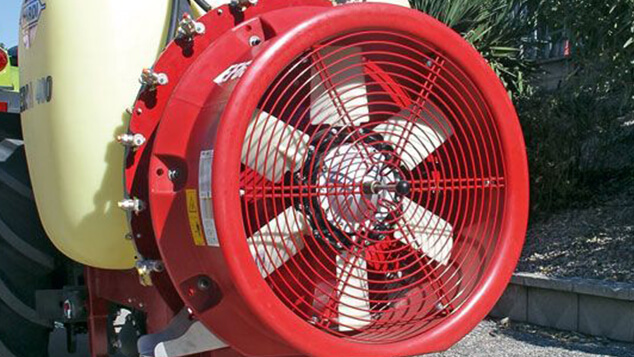

Air kits & deflectors

The HARDI Air Kits maximise air flow and distribution with reduced noise and power consumption - to power first-class chemical application.

The fan housing is made of high-impact polyethylene and incorporates a unique channel plate that makes the air production much more uniform. The fan blades are made of high strength polymer and can be adjusted to tailor their throughput.

 ZEBRA is available with EF650 & EF750 Air Kits:

  • EF650 provides up to 25.000 m3 air/h - (300 & 400 liters only)
  • EF750 provides up to 30.000 m3 air/h - (600 & 800 liters only)
  • EF-series axial blowers have a disconnector of the fan, are belt driven, have no centrifugal clutch

These air kits are fitted with 2 x 6 single, non-drip nozzle holders with nondrip valve.

All air kits can be fitted with a top V deflector to prevent the spray mist from going directly up, where there is no vegetation.

Control units

SV/2 control unit
Electrically operated Solenoid valves allow the operator to control the main ON/OFF valves and the two distribution valves from the cab. The SV/2 is made of brass and is fitted with a precision pressure gauge. Pressure control is manually adjusted

M70 - manual control unit
The M70 includes a main ON/OFF valve, pressure gauge and distribution valves for two spray lines. A spray gun can be connected directly to the manifold.


Pumps

HARDI diaphragm pumps are specifically designed for use with plant protection products. The diaphragms separate liquids from the pump bearings and crankshaft, ensuring reliable and durable operation.

HARDI diaphragm pump features:

  • Self-priming
  • Able to run dry without damage
  • Grease-lubricated crankcase
  • Chemical resistant diaphragms and valves
  • Able to rotate clockwise or anti-clockwise
  • Easy to service without special tools
