NAVIGATOR

Type

Trailed

Tank Capacity

3000 / 4000 / 5000 / 6000 l

Boom Width

18 - 36.5 m

Boom Types

EAGLE, FORCE, PARAGON

NAVIGATOR

Type

Trailed

Tank Capacity

3000 / 4000 / 5000 / 6000 l

Boom Width

18 - 36.5 m

Boom Types

EAGLE, FORCE, PARAGON

NAVIGATOR - The Obvious Choice

 NAVIGATOR is built on a platform of simple, reliable solutions combined with ease of use and excellent serviceability.

Versatile options include 3000, 4000, 5000 and 6000 litre tank capacities and advanced electronics, making NAVIGATOR the obvious choice in countless operations – from row cropping to small broadacre.

With a proven HARDI diaphragm pump and a choice of strong, wide booms in steel or aluminium, NAVIGATOR is the key to accuracy, efficiency and productivity.


IntelliTrack

IntelliTrack is a high-end steering drawbar concept that combines an excellent chassis design with advanced electronics.

The tracking concept is easy to connect and operate, ensuring safe tracking even in difficult field conditions.

IntelliTrack has an integrated safety feature which prevents the cylinders from steering the drawbar when the driving speed is too high for the given track width.


DynamicFluid4

DynamicFluid4 ensures fast, precise control of the spray rate.

The system instantly compensates for changes that will affect flow at the nozzles such as rpm changes, acceleration, turning, and AutoSection switching.

The system includes a SoftStart feature to prevent pressure peaks, and sensor backup so an electronics fault won’t stop the spray job.

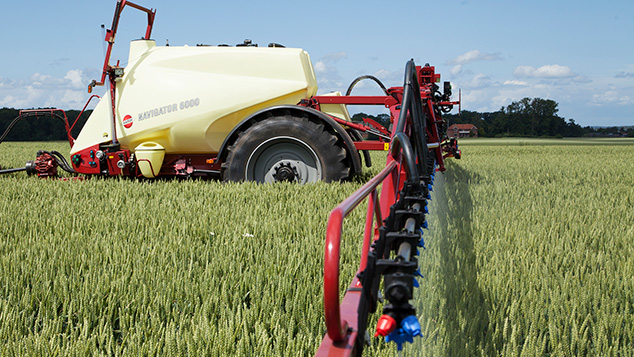

Wide choice of booms

The versatile NAVIGATOR range is enhanced by a flexible choice of boom options, to help drive efficiency and productivity on every property.

Building on the sprayer's unique HARDI boom ride, operators can select strong steel booms designed for rougher paddocks and higher spraying speeds, or wide and light HARDI PARAGON aluminium booms to maximise coverage without adding excess weight.

  • EAGLE: Simple, robust booms from 18 to 30 m
  • FORCE: Wide and strong for higher speeds and coverage 30 to 36 m
    (5000 & 6000 only)
  • PARAGON TR4: High performance aluminium booms 24 to 30 m
  • PARAGON B3 MAJOR: Extra productivity without weight at 36.5 m
    (5000 & 6000 only)

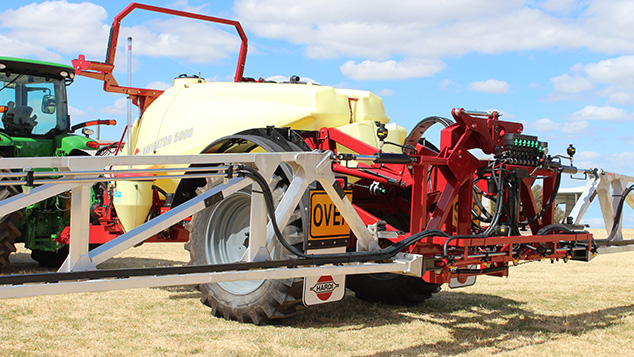

Advanced boom ride

The HARDI AutoSlant, AutoHeight and AutoTerrain systems ensure superior boom ride and height control, to help optimise the spray application and reduce operator workload.

HARDI's unique AutoTerrain technology reacts to both boom movements and twisting forces at the boom centre. This helps the system to proactively respond to movement causes rather than the boom's reaction.

The combination of boom management system also protects vauable spraying equipment by smoothing out inertia forces acting through the boom, and reducing the risk of ground strike to near zero.


Get the NAVIGATOR brochure

See all the information about the NAVIGATOR including full specifications, in-depth information  and much more!

Download your NAVIGATOR brochure

Specifications

Tank, litres3000400050006000
Pumps, type – l/min363-194 / 464-280 / 464H - 334363-194 / 464-280 / 464H - 334363-194 / 464-280 / 464H - 334363-194 / 464-280 / 464H - 334
Booms, mDELTA 18 - 24 mDELTA 18 - 24 mDELTA 24 mDELTA 24 m
Booms, mEAGLE 18 - 30 mEAGLE 18 - 30 mEAGLE 24 - 30 mEAGLE 24 - 30 m
Booms, mDELTA FORCE 24/27/28/33/36 mDELTA FORCE 24 - 39 mDELTA FORCE 24 - 39 m
RinseTank, l500500500500
Total height, m3.80 (13.6x48)3.80 (13.6x48)3.80 (20.8x42)3.80 (20.8x42)
Total length, m7.27.28.008.00
Length draw to axel, m4.805.306.056.05
Turning radius IntelliTrack, m6.006.008.58.5
Track width, m1.50 - 2.251.50 - 2.251.80 - 2.251.80 - 2.25
Width DELTA boom, m2.552.552.55
Width DELTA FORCE, m2.552.552.55
Width EAGLE, m3.03.03.03.0
Width VPZ, m2.302.30
Clearance, m0.8 (340/85R48)0.8 (340/85R48)0.81 (520/85R42)0.81 (520/85R42)
Weight total (empty tank), kg3300 - 36003400 - 47004950 - 58505000 - 5900
SuspensionOptionalOptionalOptionalOptional

Show full specifications
